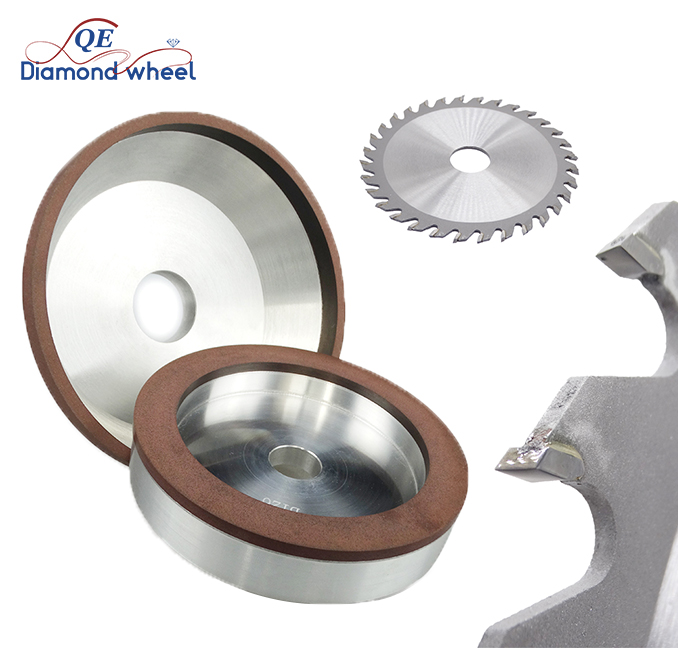

Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades
Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades
Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades
Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades

Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades

grinding wheel for circular saw blade grinding;

Abrasive:diamond / cbn
Size:75mm/100mm/125mm/150mm
Delivery time:7-15 workdays
Usage:hss and carbide saw blade

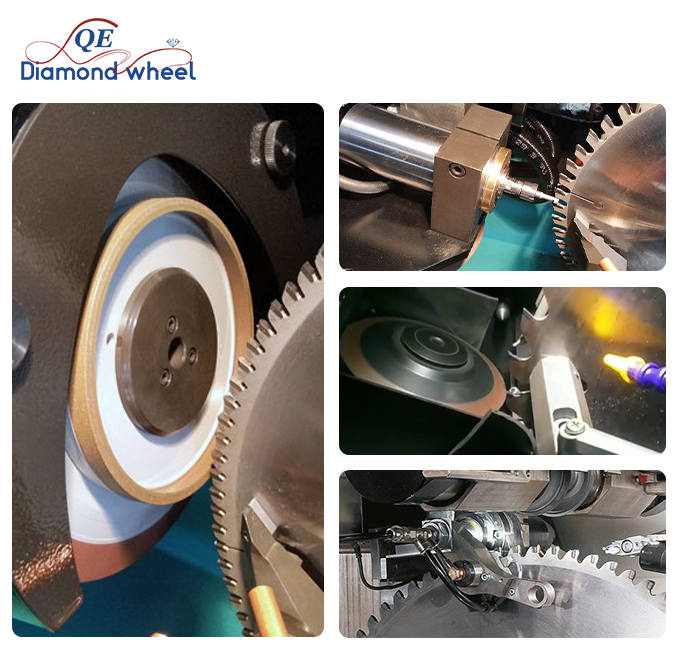

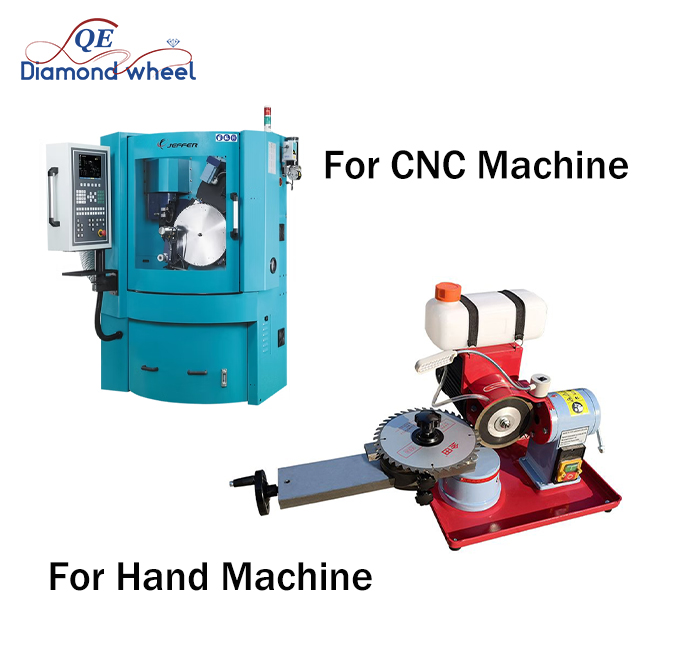

Appliaction:circular saw blade grinding machine
Machine:Vollmer, Grifo, Walter, AKEMAT, WEINIG, LINSINGER, GOECKEL, etc
  • Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades
  • Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades
  • Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades
  • Resin Diamond&Cbn Grinding Wheels for Grinding Circular Saw Blades
WhatsApp Send Email
Introduction Features Size Model Package Message Products

Product Introduction

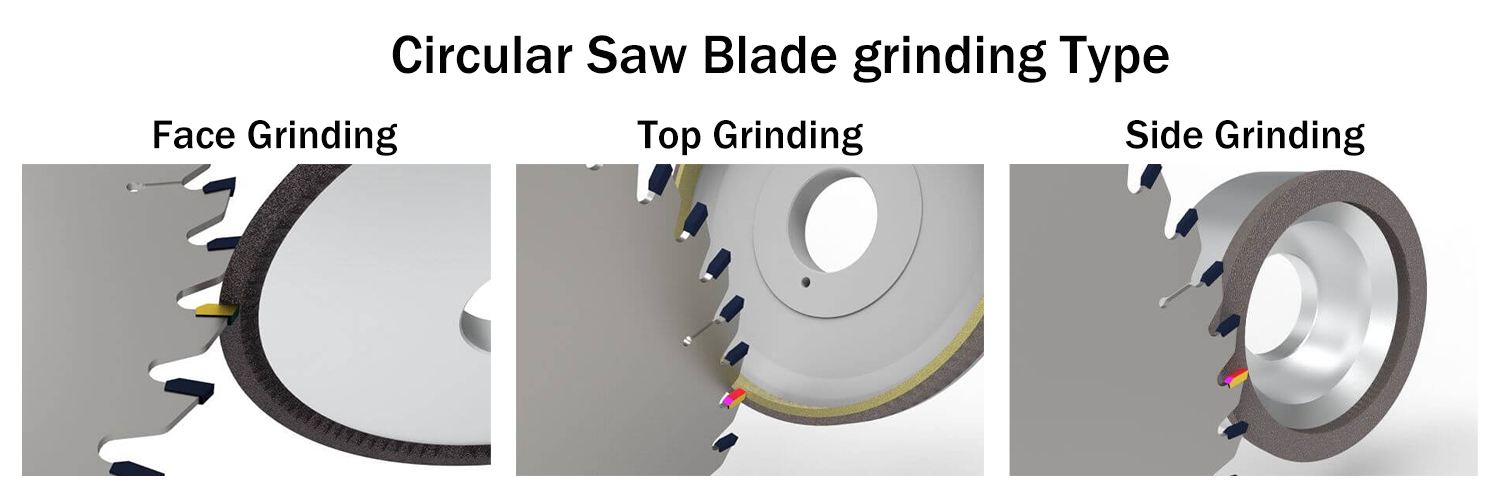

Grinding Wheels For Sharpening Saw Blades

Product Features

Resin Diamond&Cbn Grinding Wheel For Circular Saw Blade Face Grinding

  • Grinding Wheel Shaped:4A2, 4V2, 12V2, 12V9, 12A2, 4B2, etc.

Resin Diamond&Cbn Grinding Wheel For Circular Saw Blade Top Grinding

  • Grinding Wheel Shaped:4A2, 6A9, 12A9, 14AA1, 14A1, 14M1, 14B1, 3M1, 4B1, 11V9, 12V2, 12V9, etc.

Resin Diamond&Cbn Grinding Wheel For Circular Saw Blade Side Grinding

  • Grinding Wheel Shaped:4A9, 3A1, 1A1, 11A2, etc.

Resin Diamond&Cbn Grinding Pins for Hollow-tooth Saw Blade

  • Grinding Wheel Shaped:1A1W, 1A8W.

Product size

Grinding Area Shape Size Mesh

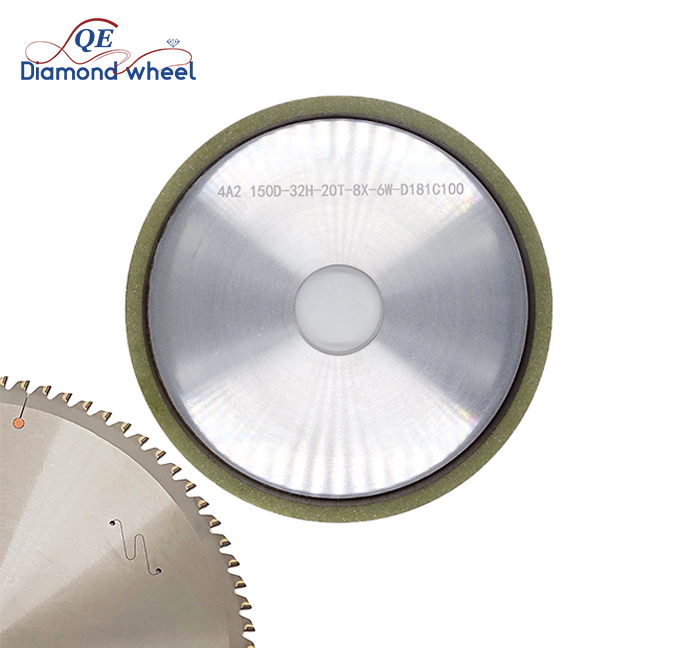

Tooth Face Grinding 4A2 D100/125*T10*H20*X5*U2 D170/200
D230/270
Double Grit:180#  / 400#
4V2 D100*T12*H32*X3*U2 D170/200
D230/270
12V2 D125/150*T13*H32*X2*U2 D200/230
D230/270
D325/400
12A2 D125/150*T13*H32*X2/4*U2 D200/230
D230/270
D325/400
Grinding Pins 1A1W D6.5/7*L45*T6*I12*U35 D200/230
Tooth Tops Grinding 4A2 D100*W4*X3*H25 D46/D64
14B1 D127*U5*X7*V15*H32 D46/D54/
D107/D126
14A1 D150*U5*X8*H32 D64
14M1 D150*U5*X8*U2.5*V5°*H32 D46/D107
Flank Grinding 3A1 D100*T14*H32*X6*U4 D140/170
D325/400
1A1 D125*W8*X15*H20 D64
11A2 D75/100*W4-6*T3-5 #100 - 230
#300 - 600
We can provide you with customized grinding wheel services. If you need other sizes and grits, please send a message to: admin@qediamonds.com

Grinding wheel model

Package

  • Resin Bond Diamond&Cbn Grinding Wheel

    Resin Bond Diamond&Cbn Grinding Wheel Package

  • 12A2 Resin Bond Diamond&Cbn Grinding Wheel

    Resin Bond Diamond&Cbn Grinding Wheel

  • 6A2H Resin Cbn Grinding Wheel

    6A2H Resin Cbn Grinding Wheel

  • Resin Bond Diamond&Cbn Grinding Wheel

    Resin Bond Diamond&Cbn Grinding Wheel Package
