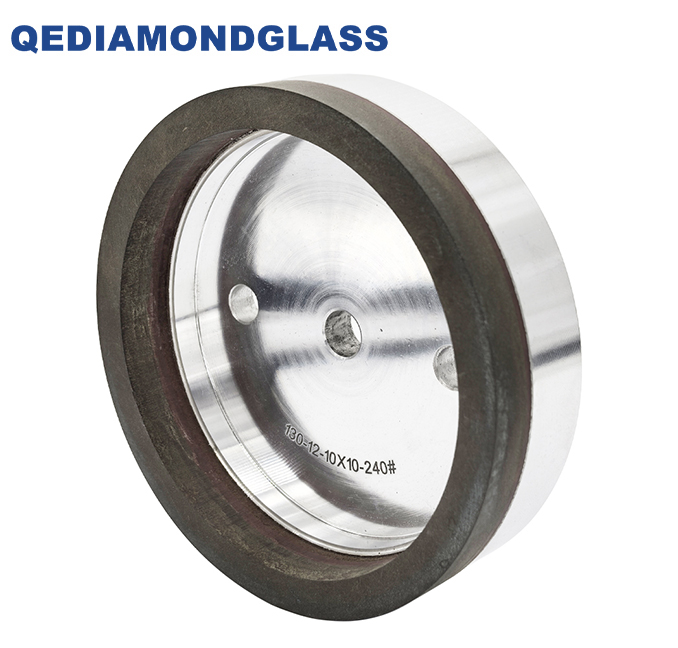

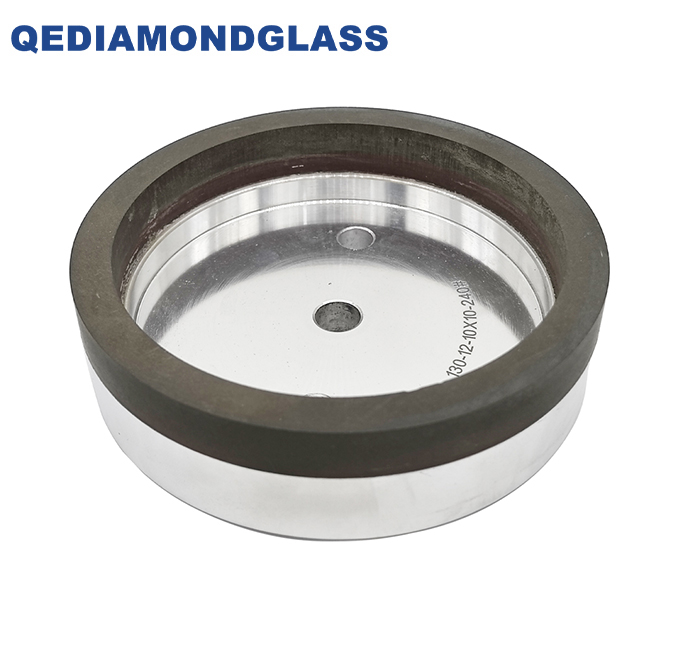

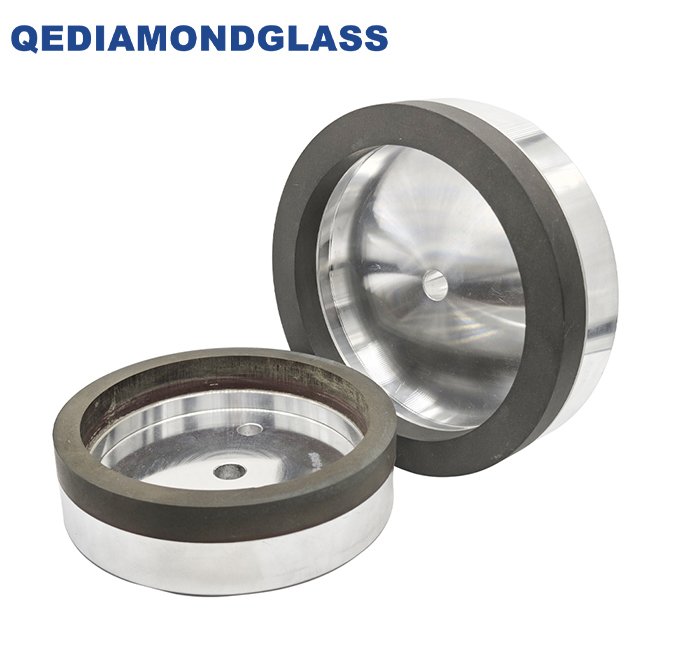

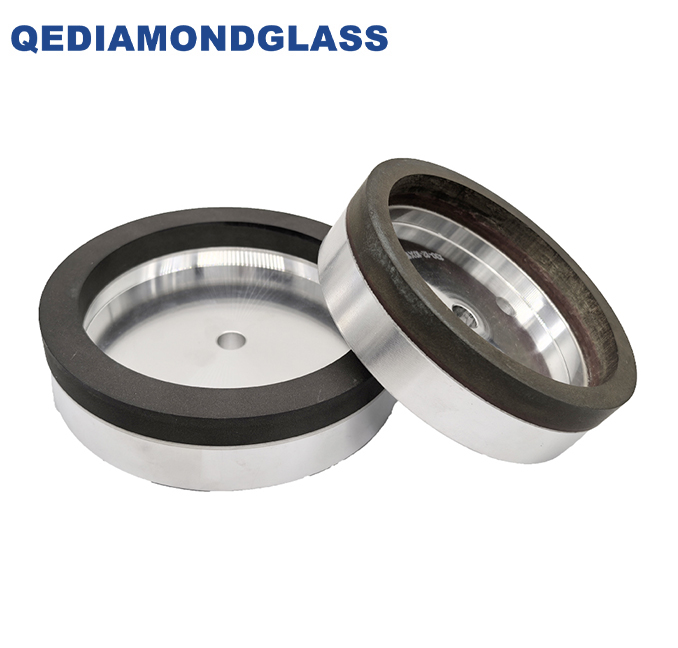

Resin Diamond Grinding Wheel

Product Name: Resin Diamond Polishing Wheel;

Product Material: Synthetic Diamond + Metal Body;

Product Shaped: Bowl Shaped (continuous);

Product Usage: Glass,ceramic,tile,stone;

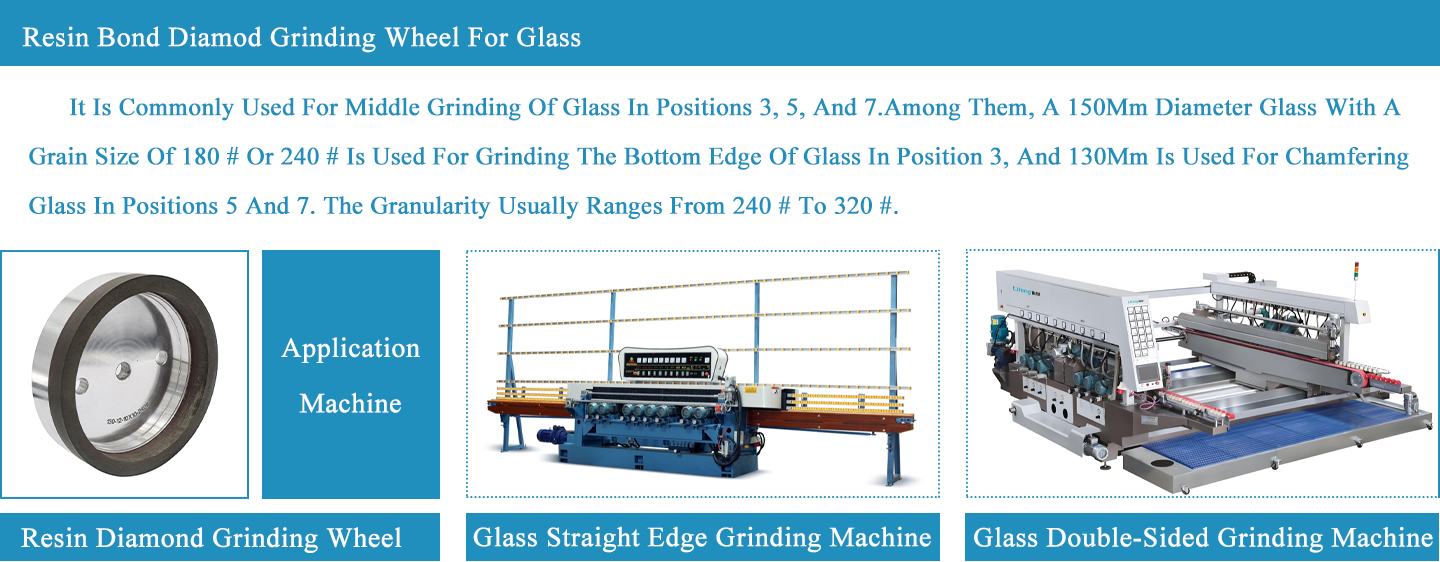

Product Application: Straight line beveling machine;

MOQ: 1pc / Paper Box;

Delivery Time: 3-10 Working Days;

Payment Methods: Paypal / TT;

Customized: Accept customization;

WhatsApp Send Email

Introduction Features Size Package Message Products

Product Introduction

Product Features

Product size

Product Name	Diameter(mm)	Hole(mm)	Abrasive Width	Abrasive Thcikness(mm)	Grit
Resin Diamond Whee	130mm	12mm/22mm/50mm	10mm	10mm	180#、240#、320#
	130mm	12mm/22mm/50mm	15mm	10mm	180#、240#、320#
	130mm	12mm/22mm/50mm	15mm	15mm	180#、240#、320#
	150mm	12mm/22mm/50mm	10mm	10mm	180#、240#、320#
	150mm	12mm/22mm/50mm	15mm	10mm	180#、240#、320#
	150mm	12mm/22mm/50mm	15mm	15mm	180#、240#、320#
	175mm	12mm/22mm/50mm	10mm	10mm	180#、240#、320#
	175mm	12mm/22mm/50mm	15mm	10mm	180#、240#、320#
	175mm	12mm/22mm/50mm	15mm	15mm	180#、240#、320#

Package
